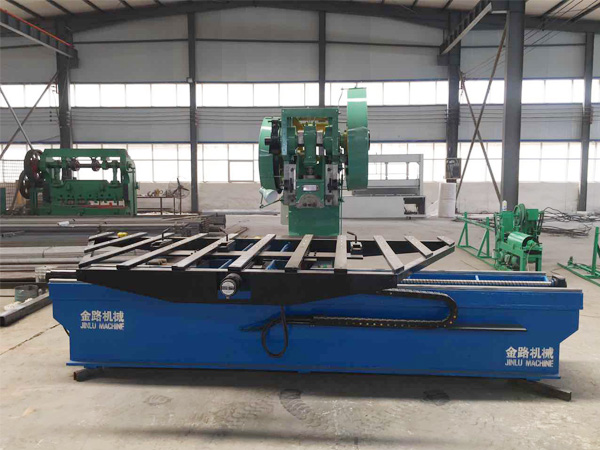

1、Equipment components: main machine,electric box,feeding platform machine, a tool box ,one mould.
2： main parameter:
|
The model of the machine
|
JL- G K
|
|
The biggest size of working space
|
1500*3000
|
|
The biggest thickness of working part
|
6mm
|
|
The precision of the hole punching
|
±0.1mm
|
|
The axis number-controlling
|
Four (X.Y.T.C)
|
|
The precision of repetition cocalization
|
±0.1mm
|
|
The power of the main electrical machinery
|
5.5kw
|
|
pressure
|
45TN
|
|
The outside size(L*W*H)
|
4800*2560*2100
|
|
The weight of the machine
|
9.5T
|
